Perimeter wire netting guardrail

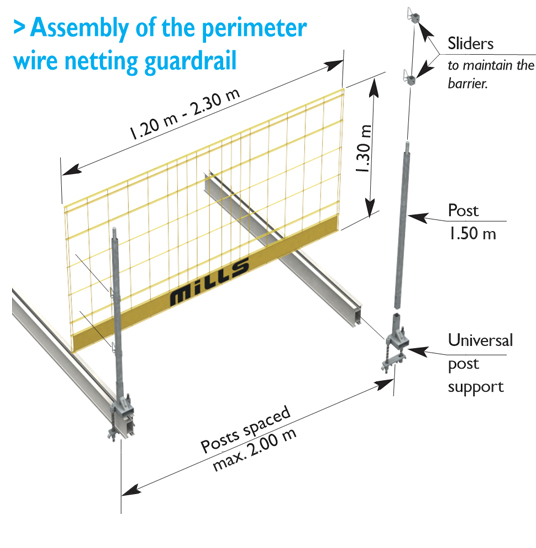

The protection system is comprised of universal post supports, posts equipped with sliders and barriers.

The universal post support adapts to all primary and secondary beams.

Indeed, according to the direction of the beams, it is attached either on the primaries, or on the secondaries. The position in height of the post is then different. The sliders make it possible to vertically adjust the wire netting barrier on the plywood independent of the position of the post. The post support is comprised of captive parts and opens in order to facilitate assembly at the middle of the beam. It accepts posts with a 35x35mm section.

The system meets the standards of EN 13374 class A.

Advantages :

Wire netting barrier:

Height: 1m30.
Weight less than 15 kg.
Flat for storage and the corners.
Dedicated cradle.

Universal post support:

Adapts to all types of beams.
Captive elements.
Opening possible.
Tighten with a hammer.

See the technical documentation:
