Mills GCC: Guardrail for formwork

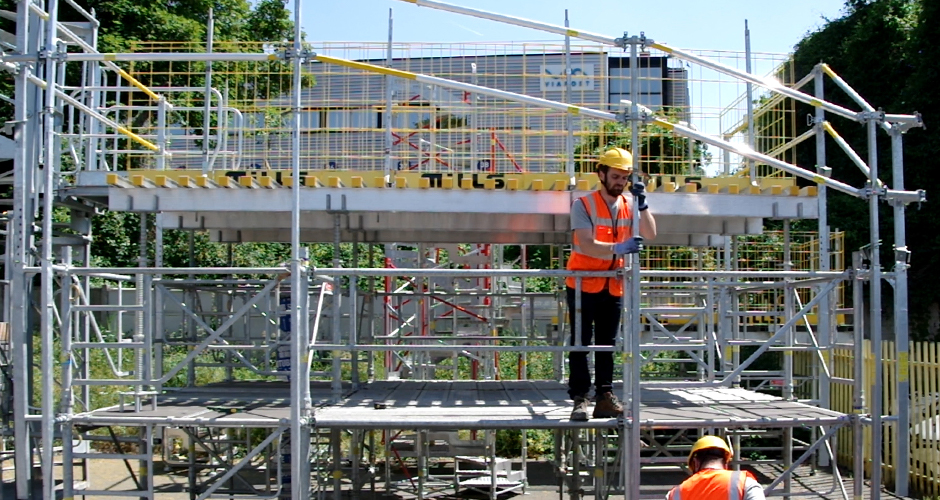

Combined with the Touréchaf falsework towers and the MP3 formwork beams, the GCC Mills allows for the first time, to assemble and dismantle in collective protection a traditional formwork supported by towers.

The edge guardrail of the future formwork is set from the towers before the beam laying.
The operator then installs the primary and secondary beams from the towers. He can then lay the plywood in collective protection (individual fall arrest system unneeded) with the guardrail already in place.
Levelling the GCC is simple to set up because it depends on the formwork level, not on the output of the tower jacks.

Advantages :

• Simple and quick implementation without individual fall arrest system.
• Adjustable to the jack output of the falsework and formwork thickness according to the formwork altimetry.
• Visual indicator for fast adjustment.
• Accepts non-metric spacing between uprights.
• Light parts <15 kg.
• Requires only a hammer.
• Extendable rails and upright with anti-release device (no loose parts).
• Upright with hand guard and anti-finger trap system.
• Lockable upright slide for transport.
• Meets the requirements of the EN 13374-A standard relating to temporary peripheral guardrails.
• Compatible with mesh barriers.
• Possibility of creating open or closed angles (balcony formwork).
•

See the technical documentation: :

Assemble and dismantle a traditional formwork on falsework towers in collective protection and without individual fall arrest system…
