25 / 32
Fixing the extension using
the U 1 stirrup and 0.15 m
ledger.
150
(or100)
150
100
25

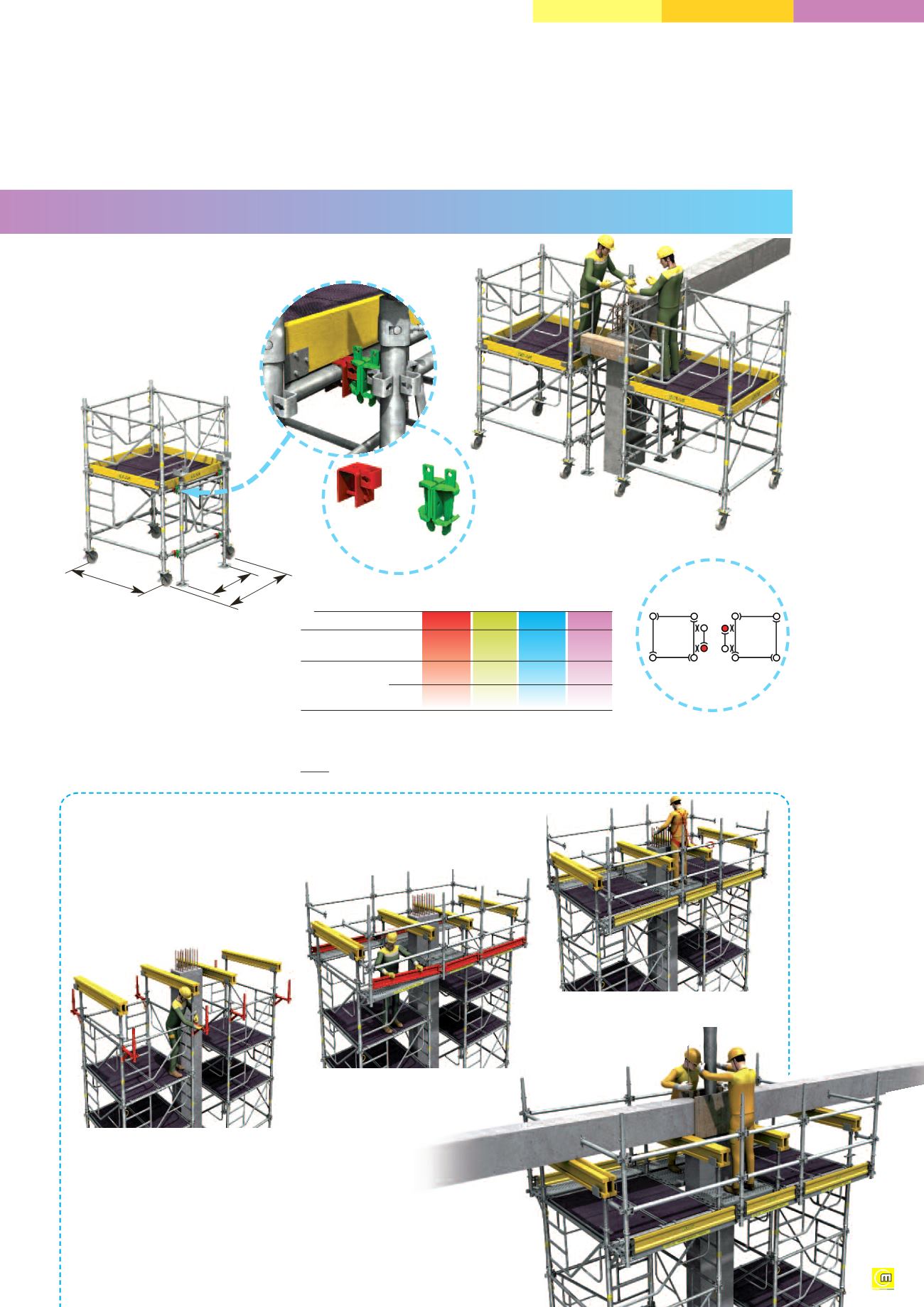

> Using overhanging deck for grouting beams:
The platform at the top of the tower is assembled simply and safely
using 0.38 m side brackets.
>
1
- The overhanging deck
can be fitted safely from a
temporary deck.
1.50 m Tourechaf mobile
scaffolding has a 1.00 m shoring
extension module which can
be raised for moving.
> Mobile system for grouting beams:
TOURECHAF
0.15 m
ledger
+
T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
>
3
- Raise the access platforms.The
operator must use a fall arrest system
until the concrete beams
are in place.
>
2
-
Fit the side brackets,
standards, ledgers, 0.30 m decking
panels and toe boards.
U 1 stirrup
Position of the
extension frames
and standards
Number of levels
2
3
4
5
Number of levels
in the extension 1
2
3
4
Height with min 1.82 m
*
2.72 m 3.72 m 4.72 m
2 way
max 2.30 m 3.30 m 4.30 m 5.30 m
adjustable head
Height of extension
* The minimum height depends on the length of the screw jack and
adjustable head.
* Replacing the 2 way adjustable head by the T1 MT65 head gives a
minimum height of 1.74 m (1.94 max).
Note: a half level can be created at the bottom of the mobile tower
and the extension using 0.50 m standards and diagonal braces.
