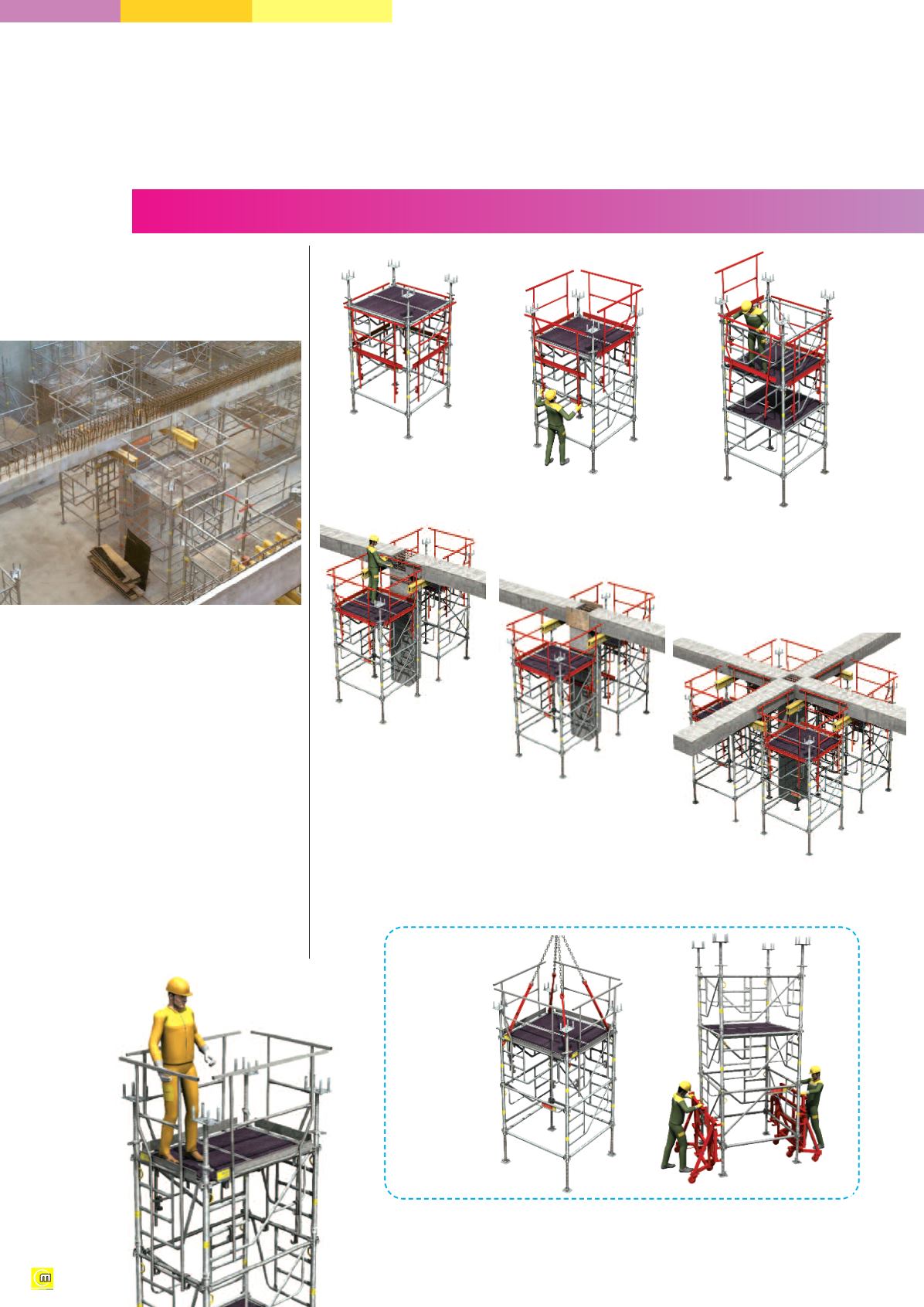

> Fitting beams:
grouting guardrails raised.
T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
Grouting
beams…
24
A
deck should be fitted
to the top of a tower
for grouting beams.
> Grouting for 4 beams.
> Using the grouting
guardrail:
1 m and 1.50 m grouting
guardrails provide protection
for workers while they are
grouting beams.
Advantages:
> Easy and quick to use.
>The guardrails are
designed to fit around
the beams.
>Allow the towers to be
moved.
> Formwork round
the joint:
The grouting guardrail next
to the beam can be lowered.
Example:
1.00 x 1.50 m tower
> Moving below the beams:
4 grouting guardrails lowered
> Fitting 4 grouting guardrails
from the outside of the tower
(tower height ≤ 2 frames).
> Safe assembly and
removal
from a temporary deck
level (tower height ≥ 3 frames).
> Lifting by
crane.
Provide 4
additional slings
to make it easier
to attach from
the deck.
OR
>
Moving
using trolleys
Moving
