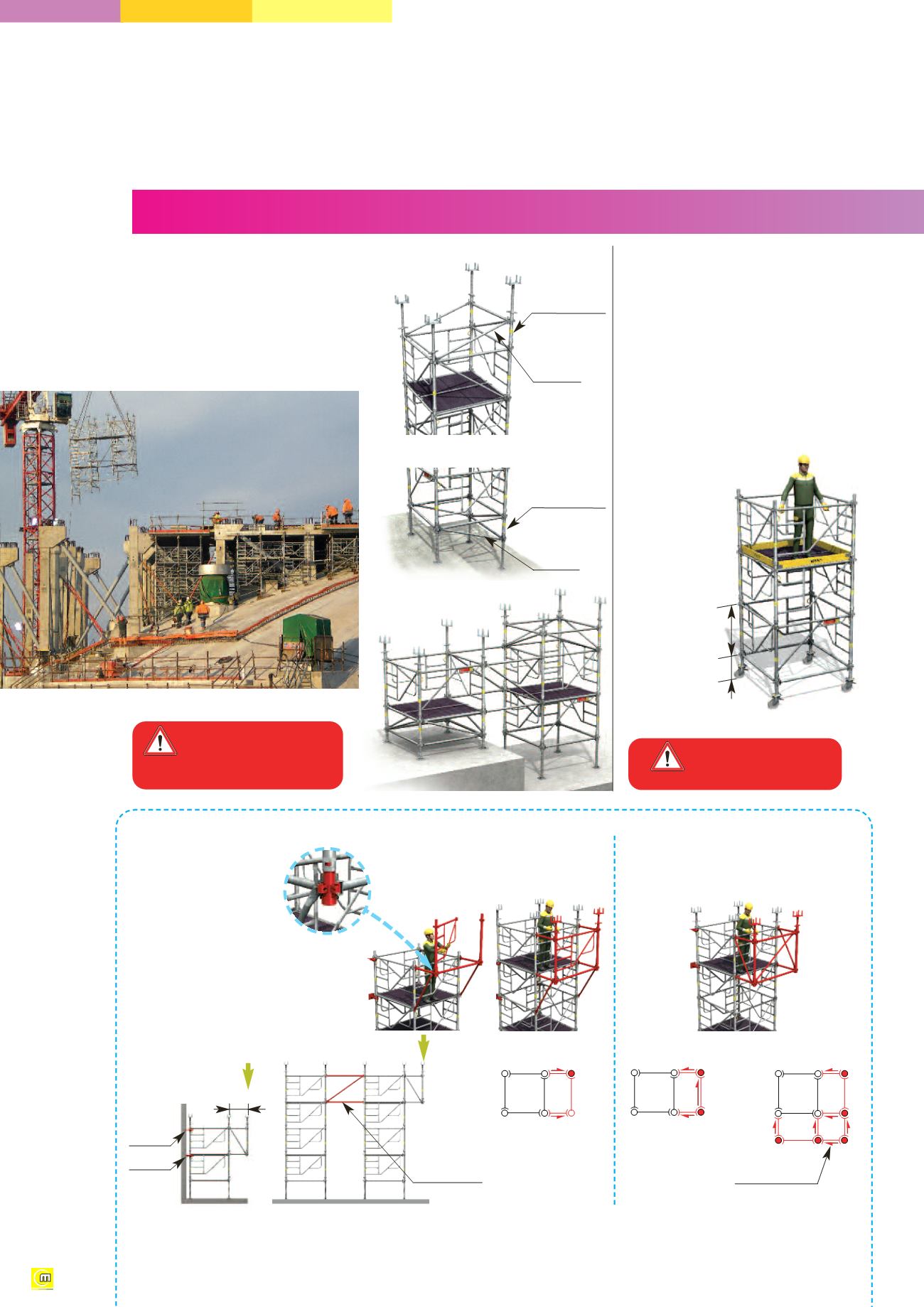

T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
Compatibility
with scaffolding...
Diagonal
brace
Diagonal
brace
Different heights at bottom
> MobileTourechaf
scaffolding:
Tourechaf castors convert shoring
towers into mobile towers with a
particularly stable square base.
Advantages:
Mobile Tourechaf towers have all
the advantages of Tourechaf shoring
towers:
Safety
- automatic locking
- integral lifting ring
- integral
access ladder
Limited
number of
components.
Easy to erect
Can be lifted
by crane.
1.00 m
0.50 m
0.50 or 1.00 m
standard
0.50 or 1.00 m
standard
NB:
200 kg max for mobile
scaffold (1 person with his tools).
> Overhangs:
or on
a corner
> Adding an overhang from the top
level of a tower that has already
been erected
(2 standards + ledgers and diagonal braces).
> Assembling the overhang
and the top level of the tower
from the lower level
(frame + standard).
Anchor
Wind bracing
0.70 m
Stop
F
F
Corner overhang
The Tourechaf connector
can be used to create an
overhang.
The load at the edge of the
overhang is limited to 500 kg.
Special calculations must be carried out
for heavier loads.The load on the overhang
is taken by the load-bearing standard.
The tower must be stabilised using an
anchorage system or wind bracing.
NB:
Standards must be braced
using ledgers and diagonal
braces at all levels.
> Using standards to
accommodate different
heights:
Shoring can be erected with different
heights at the top or bottom using
0.5 m or 1.0 m standards with diagonal
braces.
Different heights at top
Different heights
between towers
TOURECHAF
