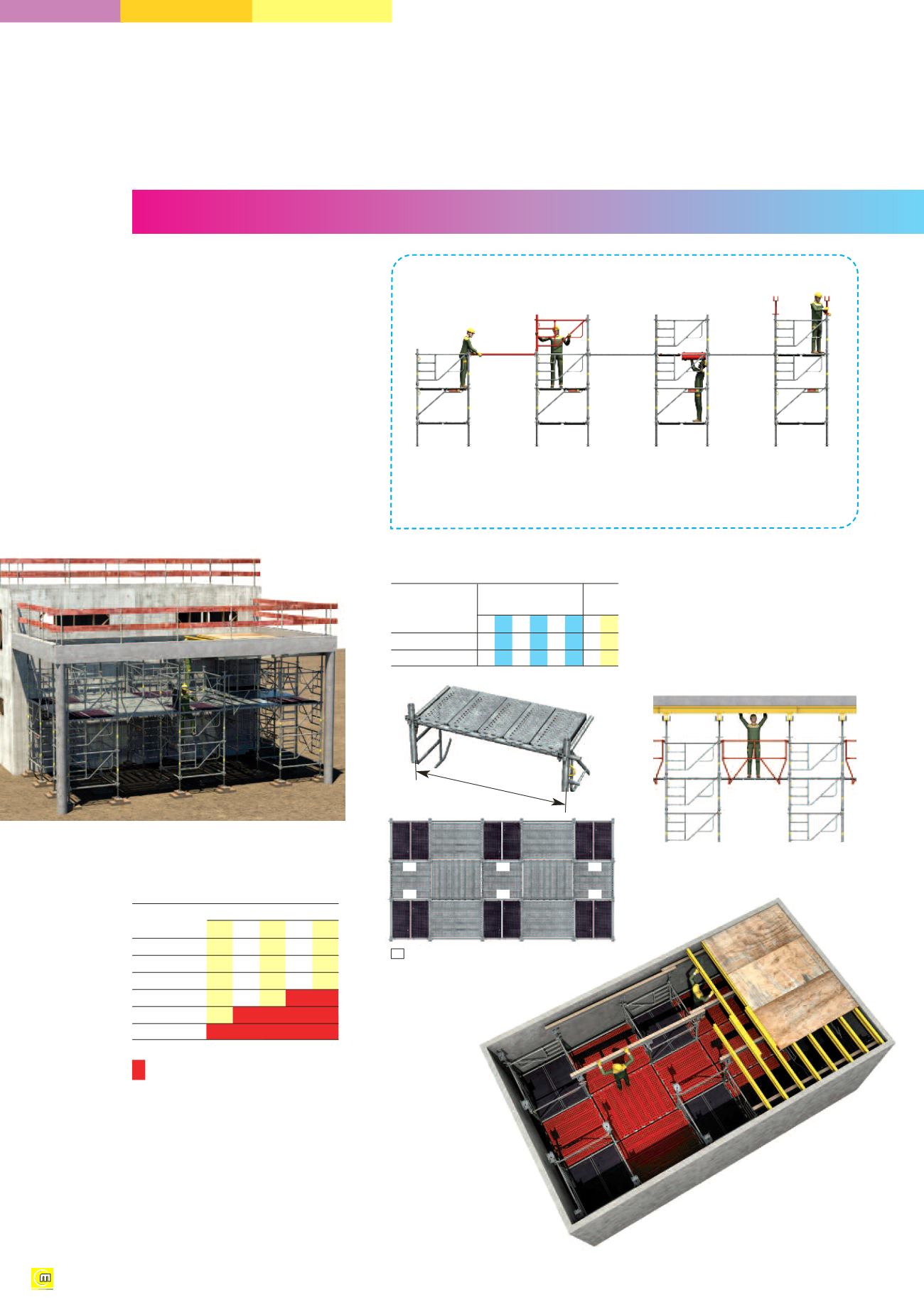

Compatibility with scaffolding...
16
Spacing Overhang
Description (cm) (cm)
70 100150 200250300 38 100
25 cm decking panel - - 2 4 - 2 - -
30 cm decking panel 2 3 3 3 8 8 1 3
For heights over 3.00 m, decks
between towers are essential for
assembling and removing formwork.
This is very simple using ledgers and
decking panels.
An access frame can be added at the
top of the towers to access the
decks.
The decking
must be laid
in alternate
directions
to avoid
overloading
the ledgers.
> DISTRIBUTION - Guardrail between towers
The safe erection guardrail
provides all round safety by fil-
ling in between each tower.
2 - Fit the
frames-including
an access frame.
3 - Move the
access-platforms.
4 - Fit the
adjustable head
and access to
decks if required.
1 - Fit the
ledgers and
decking panels.
If there is no wall round the decking, allow for fitting a guardrail.
> Fitting decks between towers:
T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
L: Ledger
:Truss T
Load bearing
Length of decking panel
ledger 100 150 200 250 300
70 L L L L L
100 L L L L L
150 L L L L L
200 L L L T T
250 L T T T T
300 T T T T T
Selecting ledgers for a dis-
tributed load of 200 kg/m²
on the deck
> Decks between towers:
150
Access frame to access decking
ce
ce
ce
ce
ce
ce
ce
Deck for assembling
and removing
formwork
