Touréchaf

18 / 32

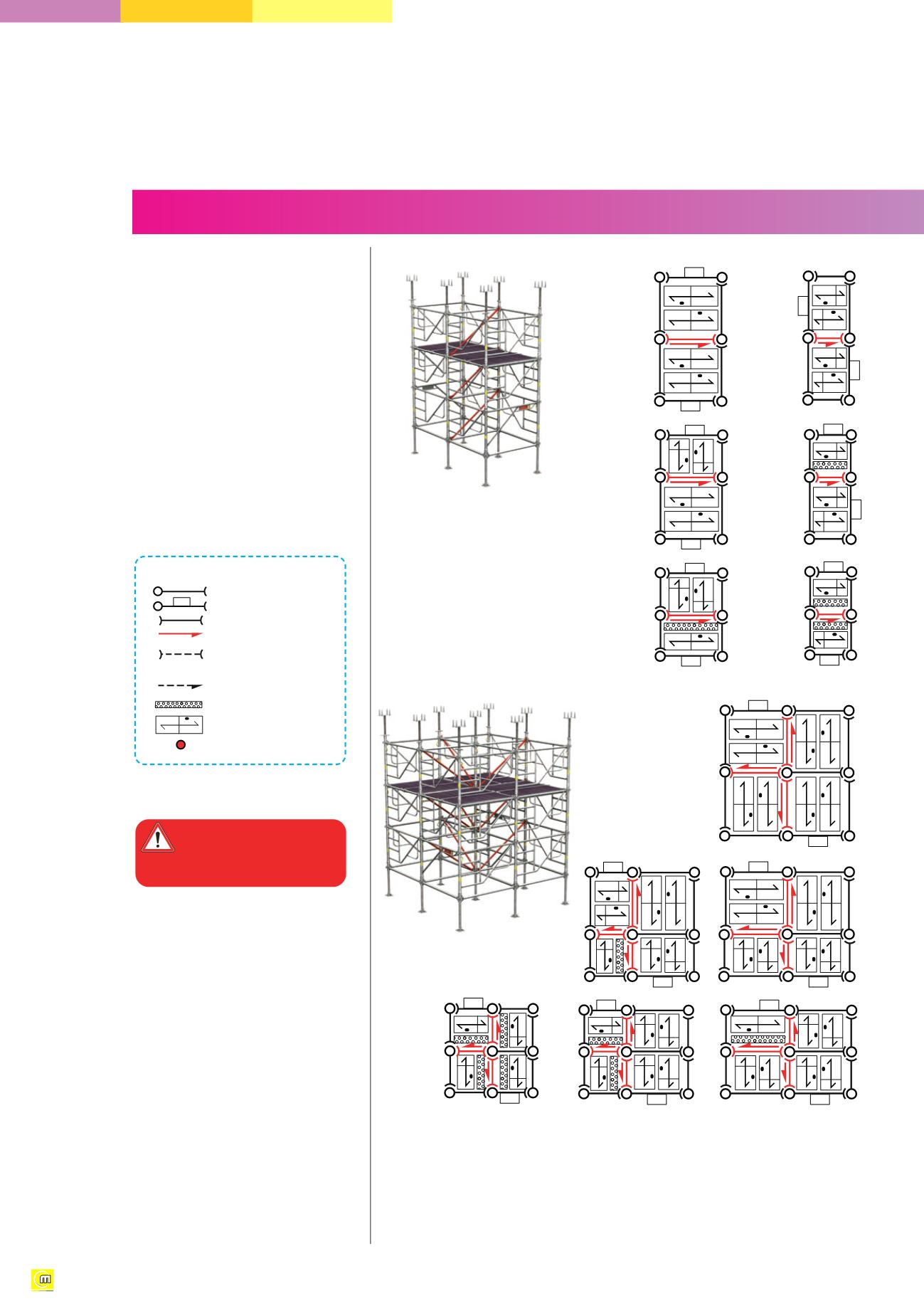

18 T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
Compatibility with scaffolding
Legend
ce
Frame
Access frame
Ledger
Diagonal brace
Ledger for wind
bracing
Diagonal brace
for wind bracing
0.20 m decking panel.
Access platform
Standard
Tourechaf towers can be joined
together, without using tube and
coupler systems, so that they form
blocks or rows. Each 1 m high standard
must be braced and anchored at
both ends and in both directions.
The deck panels must be parallel to
the ledger on the side where the
diagonal brace is mounted to
prevent interference between the
brace and the hooks at the end of
the deck panels.
ce
ce
ce
ce
ce
ce
ce
ce
ce
ce ce
ce
1.50 1.00
1.50
1.50
1.50
1.00
1.00
1.00
Assembling components of towers with
6 standards
- On the outside and the first level,
there should be 2 access frames,
preferably with 1.50 m spacing.
- Inside and on all levels, there should
be 1 diagonal brace and 1 ledger.
>Tower with 6 standards:
Assembling components of towers with 9
standards:
- On the outside at the first level, there should
be 2 access frames, preferably with 1.50 m
spacing.
- Inside at all levels, there should be 1 standard
frame, 3 diagonal braces and 3 ledgers.
>Towers with 9 standards:
NB:
The middle standards
must be braced using ledgers
and diagonal braces at all levels.
TOURECHAF
ce
ce
ce
ce
ce
ce
ce
ce
ce
ce
ce
ce
1.50 1.50
1.50 1.00
1.00 1.00
1.50
1.50
1.50
1,00
1.00
1.00
