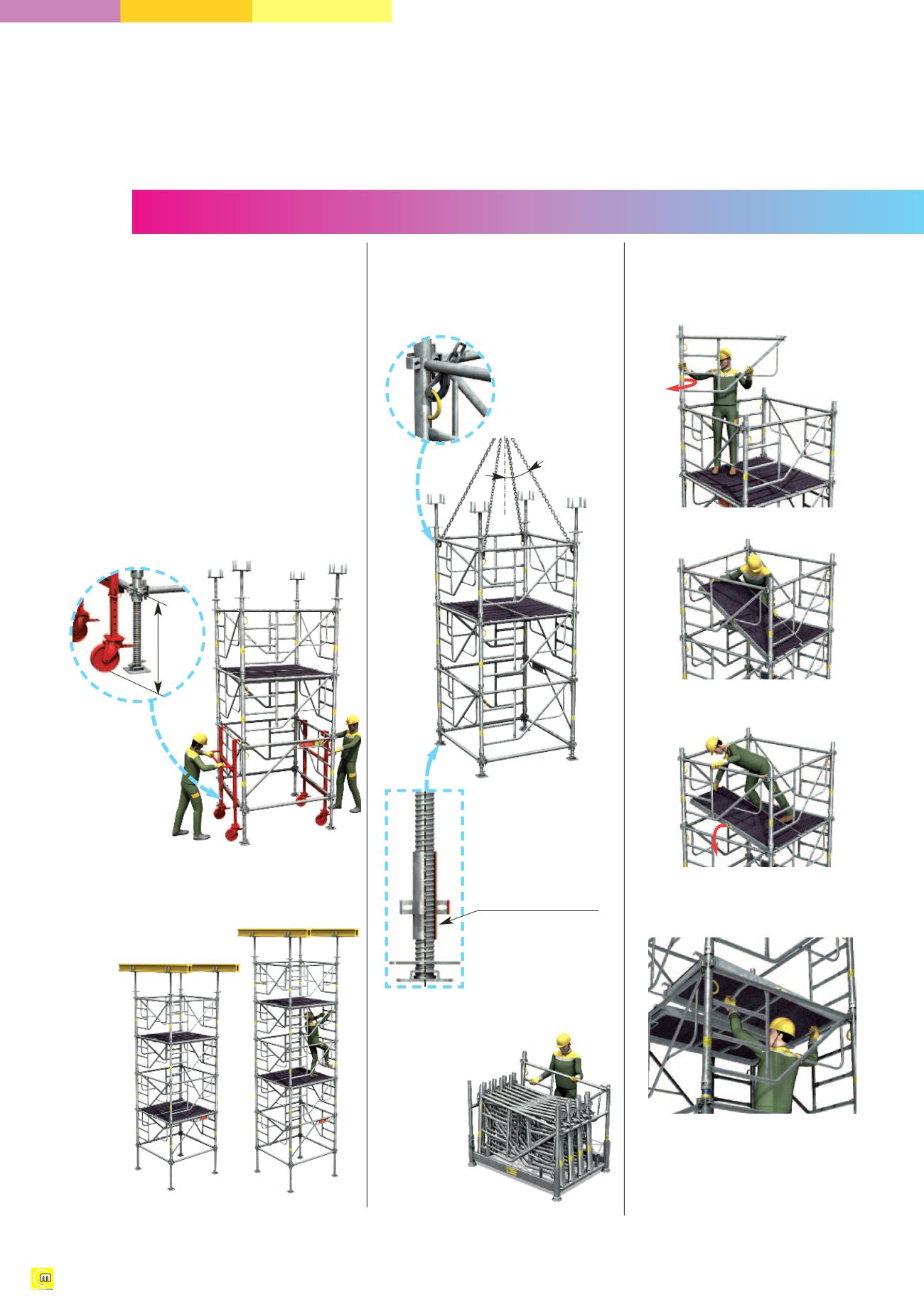

> Lifting:
The tower has integral lifting rings
so that it can be moved by crane.
The operation is easy and safe
as the frames and
screw jacks forming
the tower are
locked together
automatically.
T
ourechaf has been specially
designed to reduce manual
handling injuries. Standard parts
weigh less than 15 kg and are easy
to handle.
The design makes it easy to lift the
tower by crane to reduce the number
of times it has to be dismantled and
assembled.
The unit weight of standard parts is less than
15 kg to reduce manual handling injuries...
> Handling:
The Tourechaf frames are fitted
using a single insertion point from
inside the tower.
Fitting the decking:
45°
max.
Lower the decking while leaning on the frame.
Screw jack with threaded
sleeve.
There are two handles under the decking so
that it can be raised easily.
Raising the decking from below:
> Storage:
The frames are stored
vertically, ready
to be
assembled,
and so
there is no
need to
bend down
to pick
them up.
T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
12
Ergonomic
design...
TOURECHAF
To make it easier to fit the decking, hold the end
in position with the right hand and forearm and
fit the 2 hooks under the ladder first.
> Moving:
If assembled on a concrete slab, the
towers can be moved easily by
hand using the special trolleys.
Do not move towers that have
more than three levels (four levels
for adjustable trolleys).
4 levels
5 levels
17 cm
min.
>Access:
2 access platforms should be
fitted every 2.00 m as landings.
