T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
Erecting
and dismantling a 1.50 m x 1.00 m tower...
Dismantle in the reverse order
of assembly...
8
Type of tower
Number of levels 1
2
3
4 5
Minimum height
1.82 m
*
2.37 m 3.37 m 4.37 m 5.37 m
Maximum height
2.46 m 3.46 m 4.46 m 5.46 m 6.46 m
Screw jack
4
4
4
4
4
1.50 m ledger
2
2
2
2
2
1.00 m ledger
2
2
2
2
2
1.50 m access frame 1
1
1
1
1
1.50 m frame
1
3
5
7
9
1.00 m frame
2
4
6
8 10
2 way adjustable head 4
4
4
4
4
1.00 m access platform 0/2
2
2
**
4
4
Weight (kg)
130/150 200 250 310 360
2 3 4 5
1
Components required for 1.50 x 1.00 m frame
* Minimum height determined by the length of the screw jacks and heads.
**Allow 2 additional access platforms for assembly.
Two 1.00 m
access
platforms
>
1

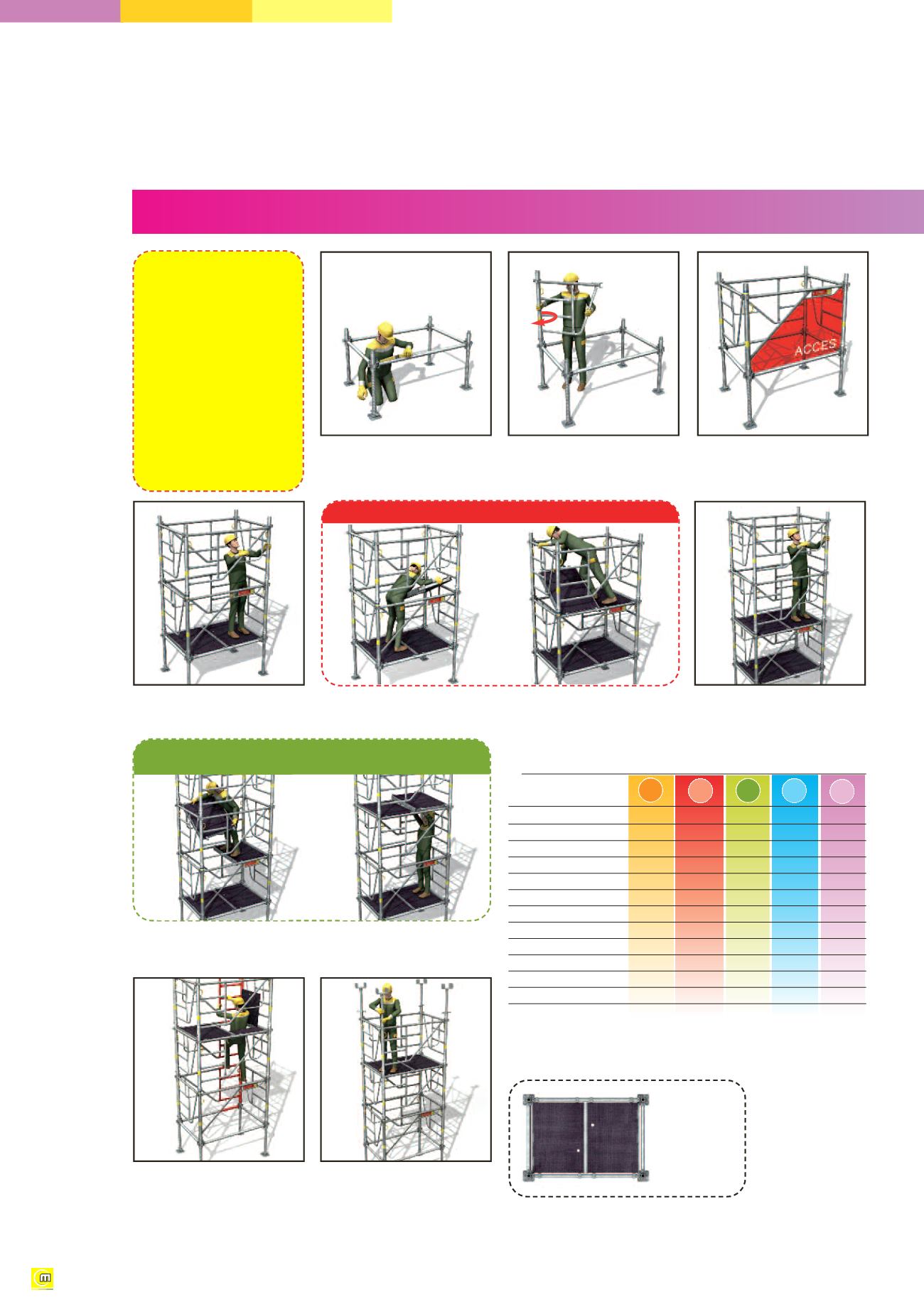

- Erect the base and
level it.
>
2
- From the inside of the
tower, fit the first frame diago-
nally and swivel to lock it.
>
3
- Fit the 1.50 m access
frame for easy access.
>
5
- Fit the first 1 m access
platform.
>
4
- Fit two 1 m access
platforms and add the
second level.
>
6
- Move up to the next
level and fit the second 1 m
access platform.
>
7
- Erect the third level.
>
11
- Fit and adjust the
heads.
>
10
- The bottom deck can
be removed.The top level can
be accessed by the integral
ladder.
Fit a temporary deck
>
8
- Raise the first access
platform.
>
9
- Raise the second
access platform from below.
Raise the access platforms to their final position so
that there is a height of 2.00 m between floors.
ASSEMBLY
REQUIREMENTS
> Ensure that the load is evenly
distributed on the ground.
> Ensure that the base is level.
> Erect the first level of frames
from the inside of the tower.
> Position the hatch above the
ladder.
> Ensure that the tower is
stable.
> Centre the load in the forks.
> Check that the jacks are
vertical.
