T O U R E C H A F : S H O R I N G T O W E R W I T H I N T E G R A L S A F E T Y S Y S T E M
Assembling and dismantling a 1.50 x 1.50 m tower...
Dismantle in the reverse order of
assembly...
6

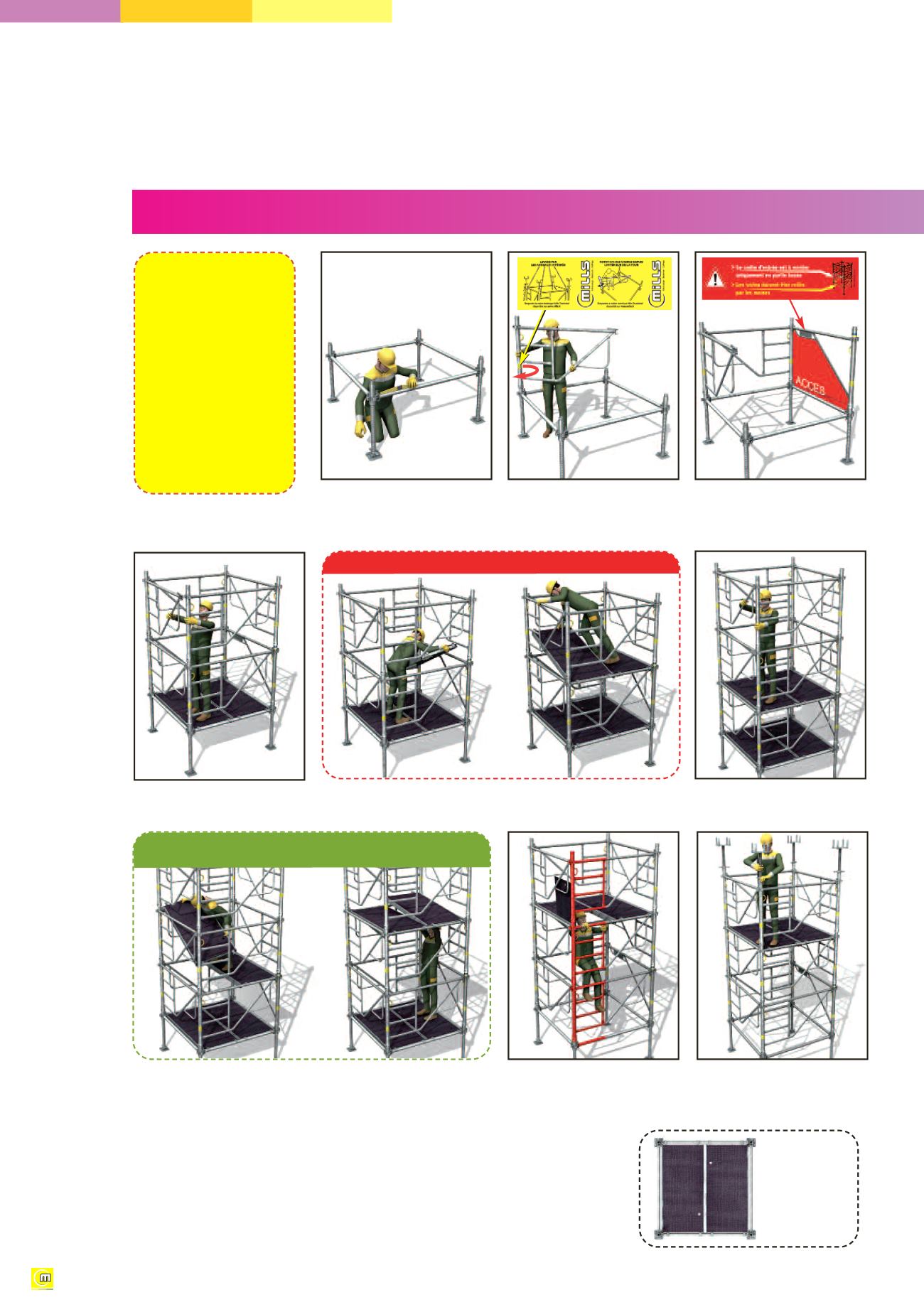

> 4 - Fit 2 access platforms
and add the second level.
> 5 - Fit one access platform. > 6 - Move up to the next
level and fit the second
access platform.
> 7 - Add the third level.
> 8 - Raise the first access
platform.
> 9- Raise the second
access platform from the
bottom level
> 10 - The bottom deck
can be removed.The upper
level can be accessed using
the integral ladder
> 11- Fit and adjust the
adjustable heads.
> 1 - Erect the base and
level it.
> 2 - From the inside of
the tower, fit the first
frame diagonally and swivel
to lock it.
> 3 - Fit the access frame for
easy access.
Monter un niveau de plancher en position provisoire
Raise the access platforms to their final position so
that there is a height of 2.00 m between floors.
A video of the erection is available
on the CD-ROM and on ..
ASSEMBLY
REQUIREMENTS
> Ensure that the load is evenly
distributed on the ground.
> Ensure that the base is level.
>Assemble the first level of
frames from the inside of the
tower.
> Position the hatch above the
ladder.
> Ensure that the tower is stable.
> Centre the load in the forks.
> Check that the jacks are
vertical.
